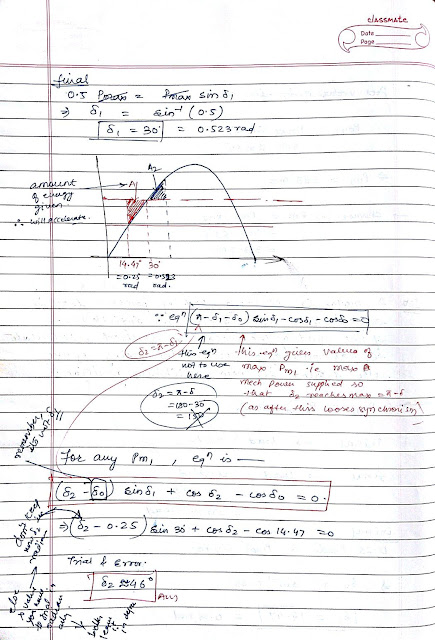

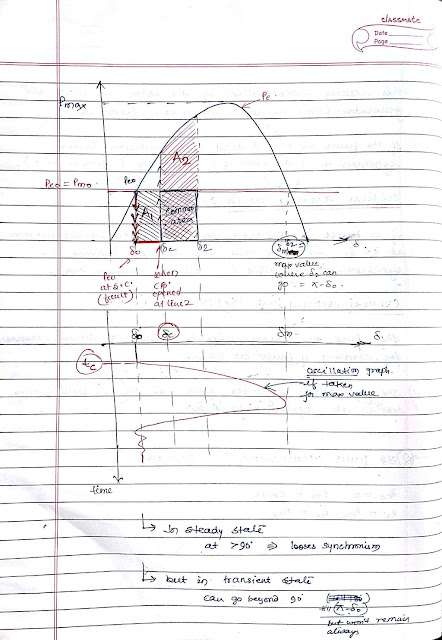

Transient Stability, Equal Area Criteria have been discussed in this article. 6 cases of Equal Area Criteria have been discussed in detail. Also numerical, derivation and graphs are well explained in all these cases. The cases includes the sudden variation of mechanical input to generator, to that of all electrical faults and variations in electrical loading power. Go through this notes , which is discussed in detail and with best possible explanation.
GATE Subject : Power Systems
University Subject : Power Systems Engineering
Guided by : MADE EASY Coaching Teacher
This is second article of Stability. The first article is Swing Equation, Steady State Stability.
Download the notes in high quality PDF (19 MB) :
Download the same notes in medium file size PDF (9 MB), from 2nd link:
GATE Subject : Power Systems
University Subject : Power Systems Engineering
Guided by : MADE EASY Coaching Teacher
This is second article of Stability. The first article is Swing Equation, Steady State Stability.
Download the notes in high quality PDF (19 MB) :
Download the same notes in medium file size PDF (9 MB), from 2nd link:
 |
